GSJ-S

APPLICATION RANGE

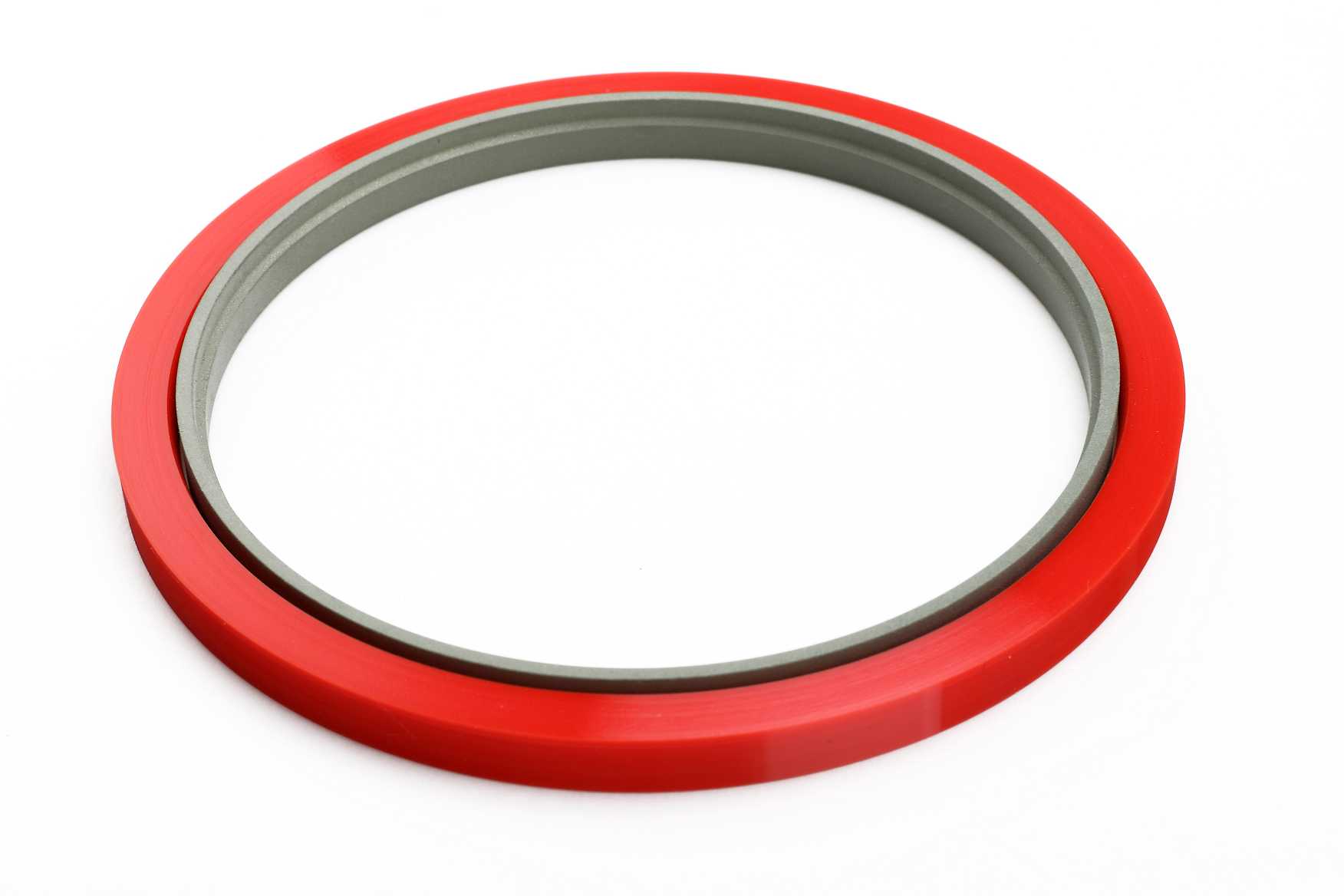

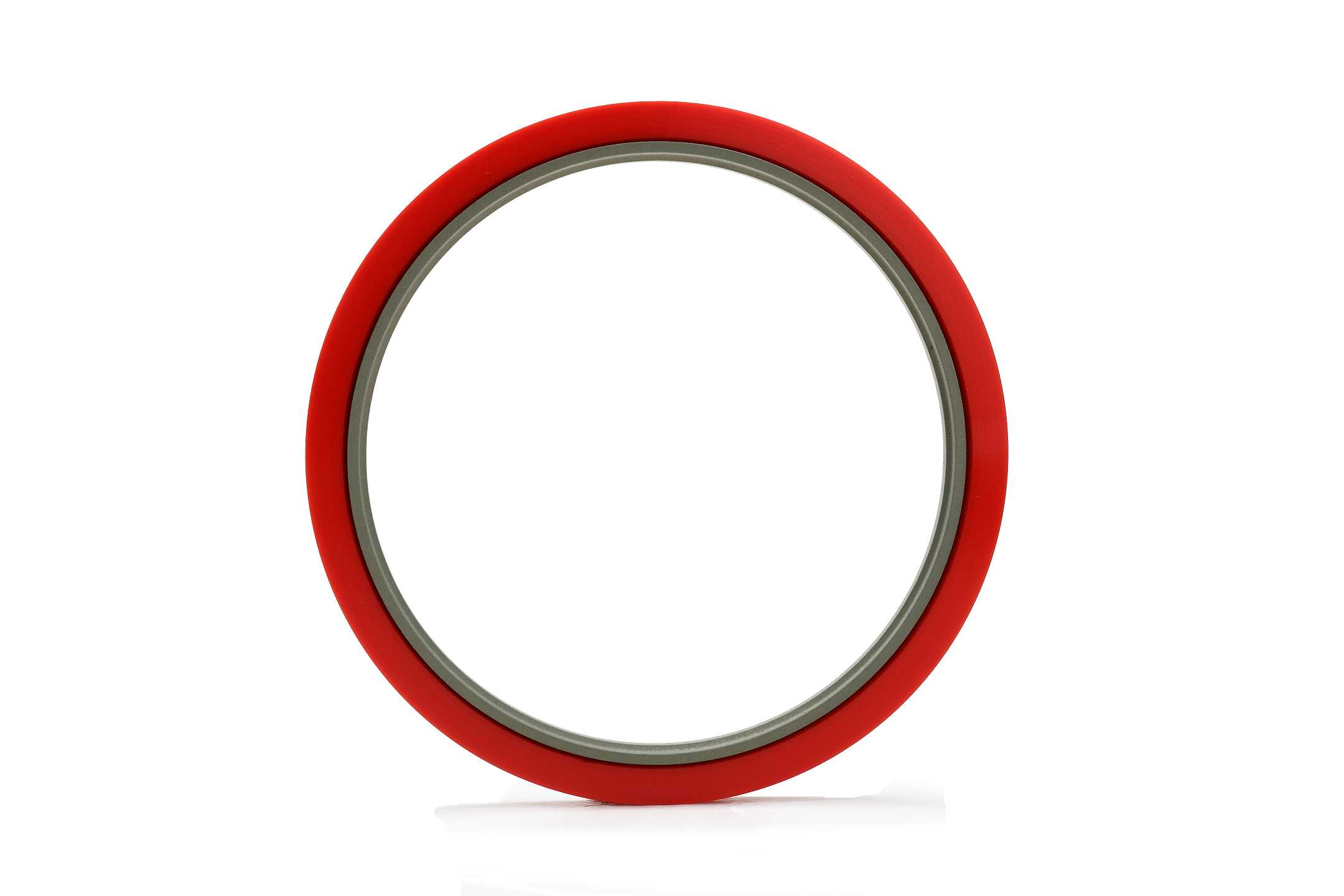

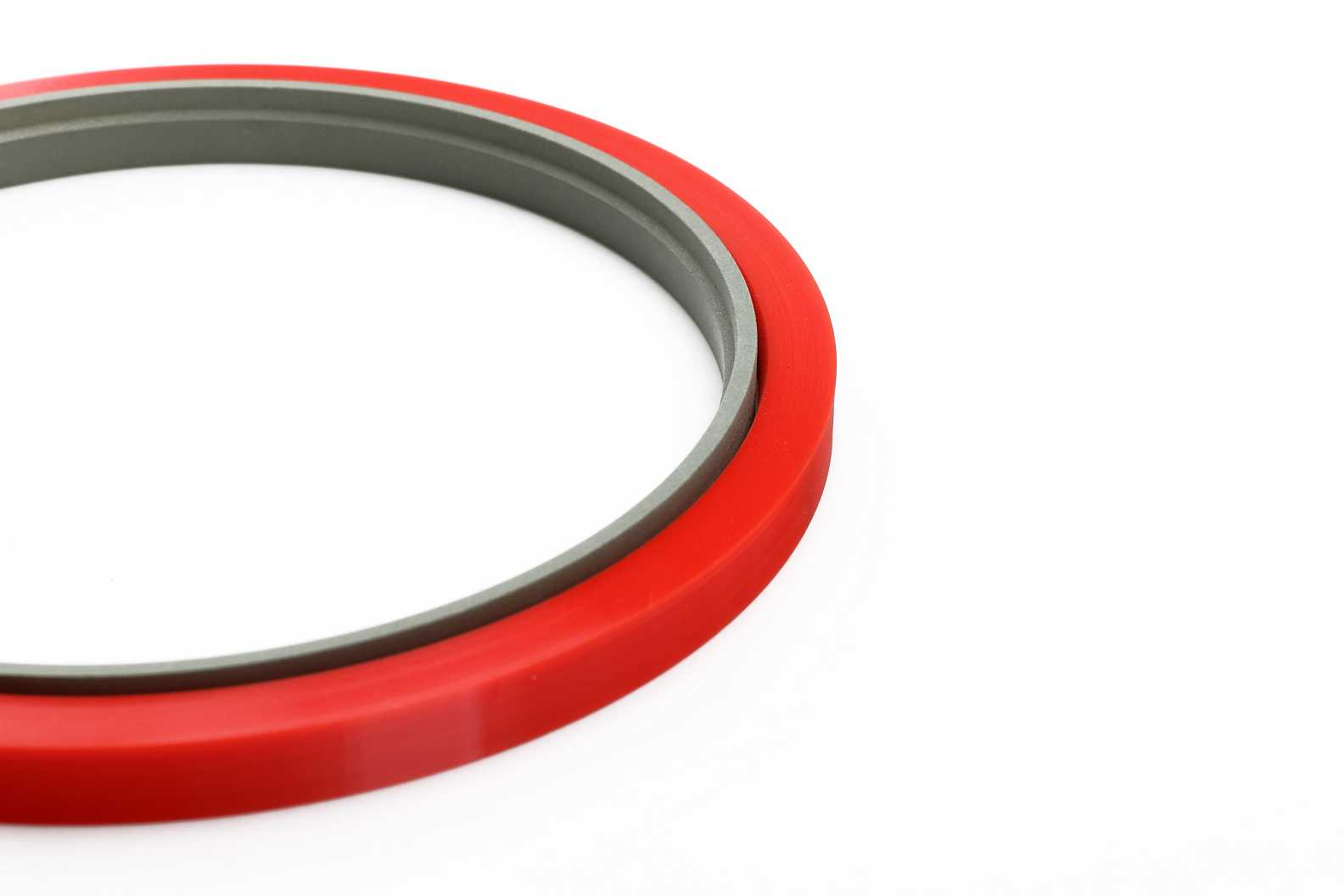

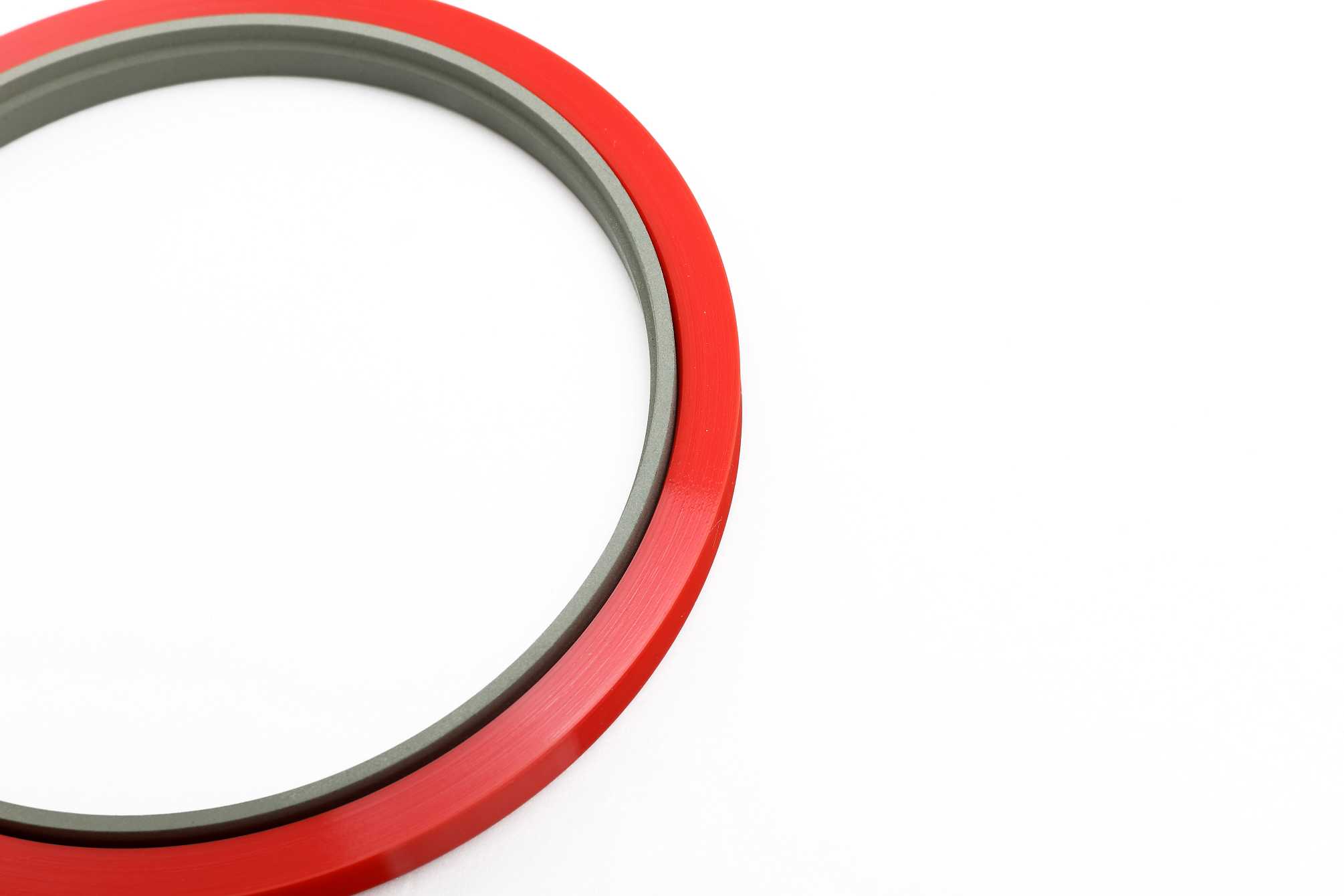

A double compact seal combines with a PTFE irregular section slide ring and a preloaded square ring. Especially suitable for bigger piston rod diameter and heavy load hydraulic cylinder sealing system under tough working conditions. For example: injection moulding machines, metallurgy machinery, shipping hydraulic devices, hydraulic presses,engineering machinery, cranes, hydraulic controlling system, etc.

  STANDARD MATERIALS
  Seal ring: filled PTFE
  O-Ring: NBR

  CHARACTERISTICS
- high pressure resistance
- high extrusion resistance
- anti-twisted design
- high contact pressure due to high elastistic of rubber
- high wear resistance
- low friciton, no hydraulic crawling

  WORKING CONDITIONGS


ELOCITY

PRESSURE RANGE

TEMP.RANGE

MEDIUM

DUANETER RANGE

5m/s

0~60Mpa

-30°C+100°C

Hydraulic oil, fire-resistant hydraulic oil, environmental protecting hydraulic oil(biology oil) , water and other medium according to the sealing material.

50-2000mm
