JDMI

APPLICATION RANGE
The JDMI tandem seal for multi-fluid inside sealing applications, is used to seal piston rods and plungers. It can be used with mineral oils and in
modified form with water base fluids, fire resistant fluids and compressed air.

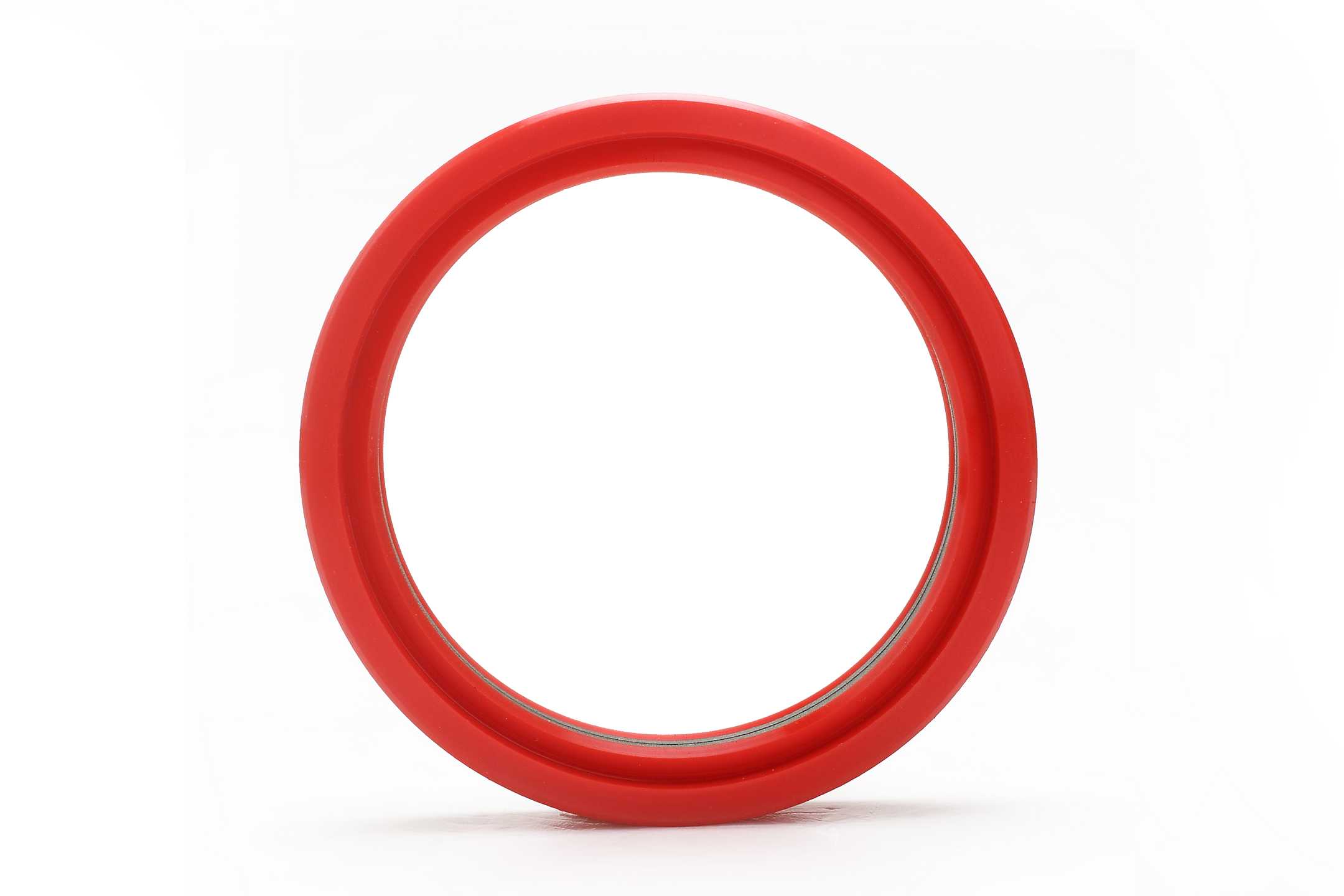

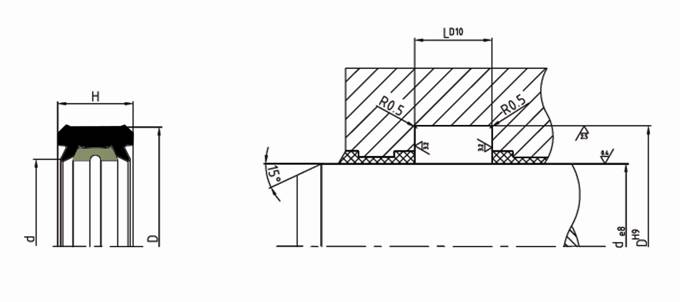

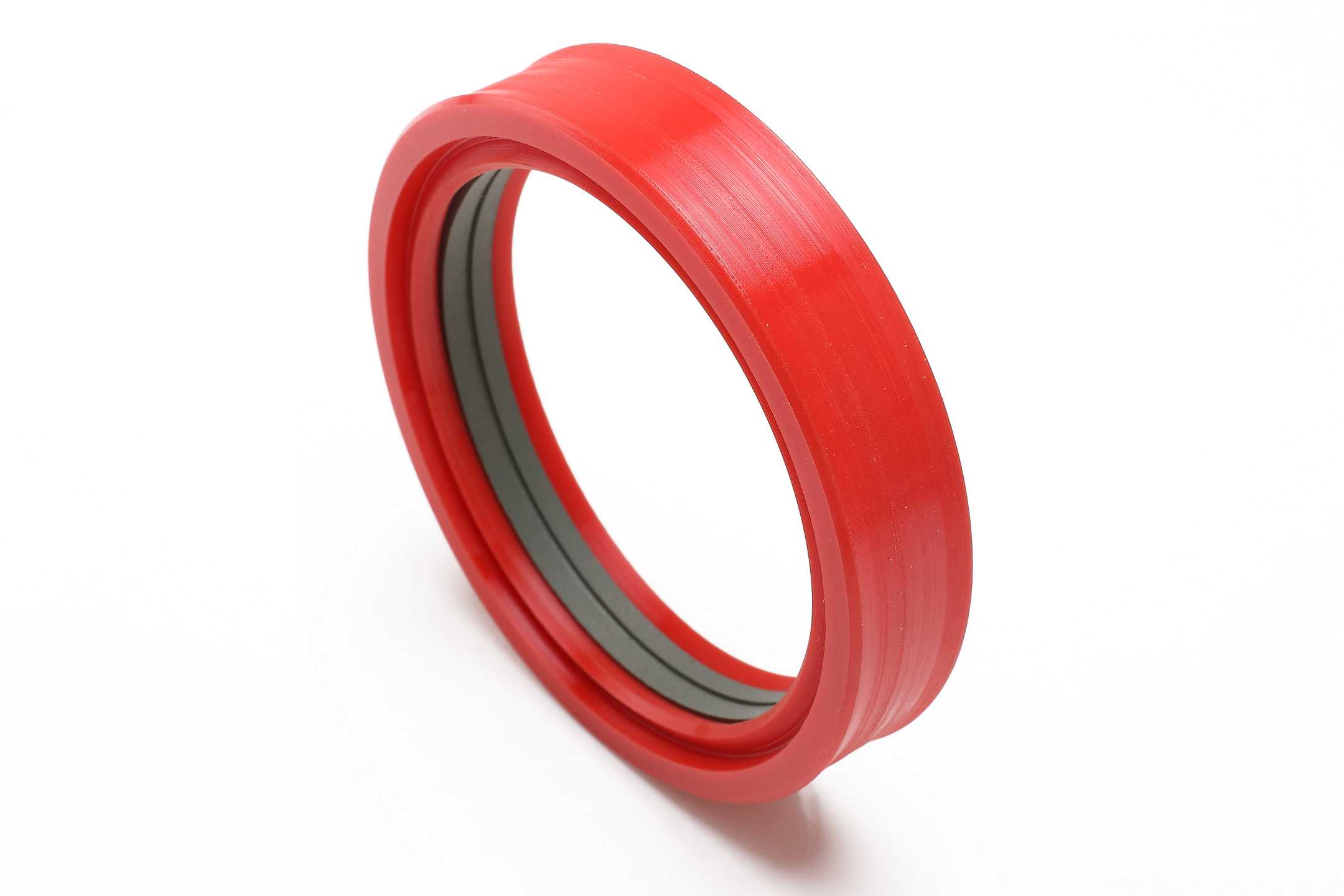

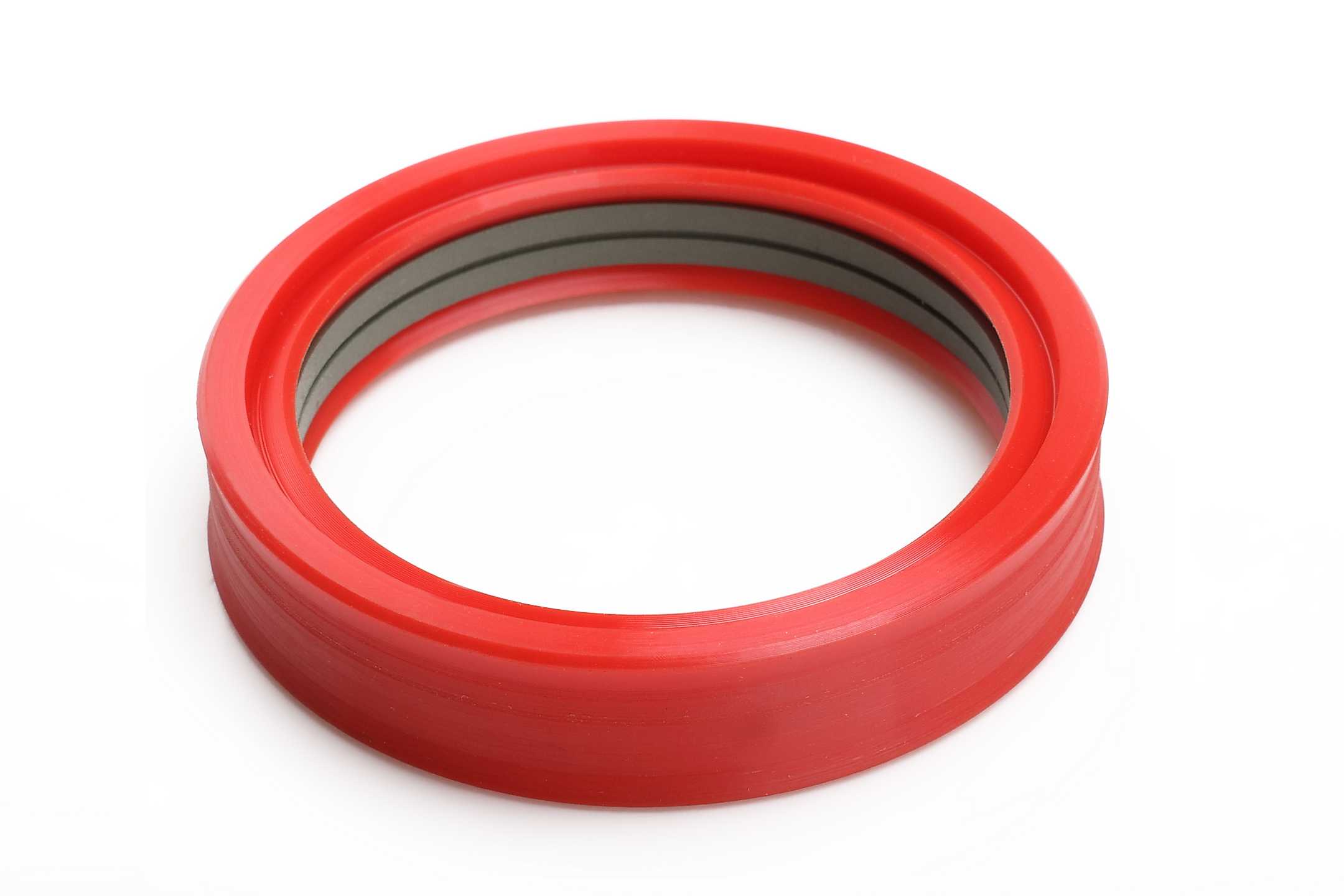

The JDMI seal consists of two parts, an elastic ring with two sealing lips and an internal slide ring of abrasion resistant PTFE-Bronze compound. Prior to fitting, the sealing lips protrude beyond the nominal diameter of the seal and when fitted are pressed against the piston rod. Effective sealing is thereby provided even at zero pressure. It is recommended for use where different fluids on each side of the seal must be kept separate. Due to its good dry running properties, it can be used as a fluid seal on one side and simultaneously as a dirt wiper on the other side.
