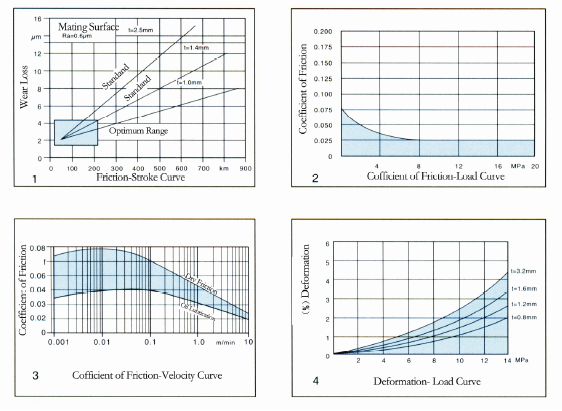

TECHNICAL CHAERACTERISTICE
 Slydway is a high polymer wear-resisting material applied to slydways, or other linear guideways. Low friction and wear are the key factor in design.Besides low friction and wear, slydways on machine tools ensure the exact direction of motion of components, reduce mechanical fault, prolong the life of mechanical components, save resources and improve viscosity.

  PROPERTIES
- easy installation, excellent adhesion property
- low wear, even in the event of poor or failed lubrication
- high shake proof performance
- high positional accuracy and repeatability of the working movements
- high wear resistance, thus ensuring a long service life
- chemically resistant to aggressive cooling lubricants
- impervious to soiling and moisture
- compatability with lubricants, oil and cutting fluids

APPLICATION

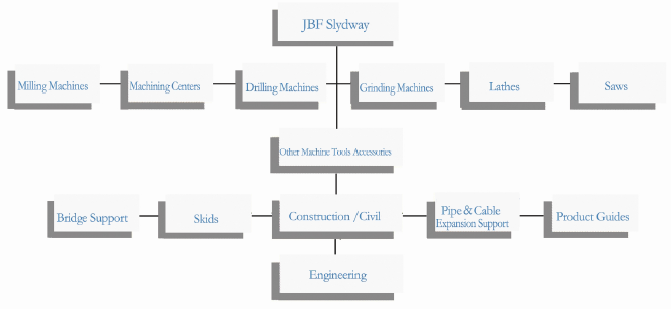

Slydway JBF Application Example

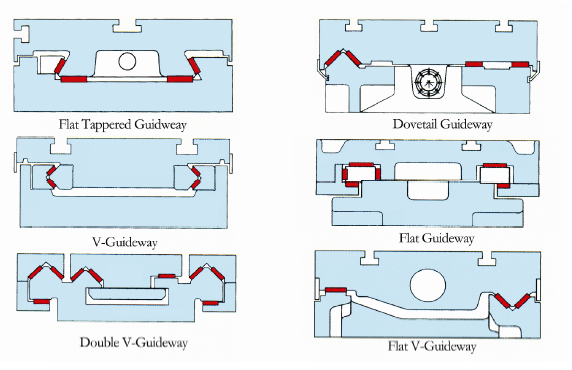

  INSTALLATION EXAMPLE

  APPLICATION ON TRADITIONAL MACHINE TOOLS
  Slydway JBF is a high performance thermoplastic material for use on linear bearing application as found on the guidedways of machine tools and other linear bearing applications.Guideways on machine tools ensure the exact direction of motion of component such as slides, sleeves, quils, plungers, etc. At the same time, guideways must bear the weight fo the guided components and workpieces and absorb the machining forces without deformation. This places critical demands on the machine tool guideways:
- high positional accuracy and repeatability of the working movements
- low production and maitenance costs
- low wear, even in the event of poor or failed lubrication
- backlash-free or minimum backlash for high repeatability even under load
- good precision retentivity to the guide pair
- excellent shock absorption, minimize shocks in cutting process under resistance
- low friciton, no stick-slip, particularly at low sliding speeds
- resistant to oil contamination and moisture
- chemically resistant to errosion and lubricants

  APPLICATION IN MAINTENANCE
  Slydway JBF is especially applicable to the refurbishment of worn machine tools. Worn linear bearing can be machined back and brought to the original working tool heights and centre lines by the application of slydway material of suitable thickness.

  SLYDWAY JBF INSTALLATION
  MATERIALS

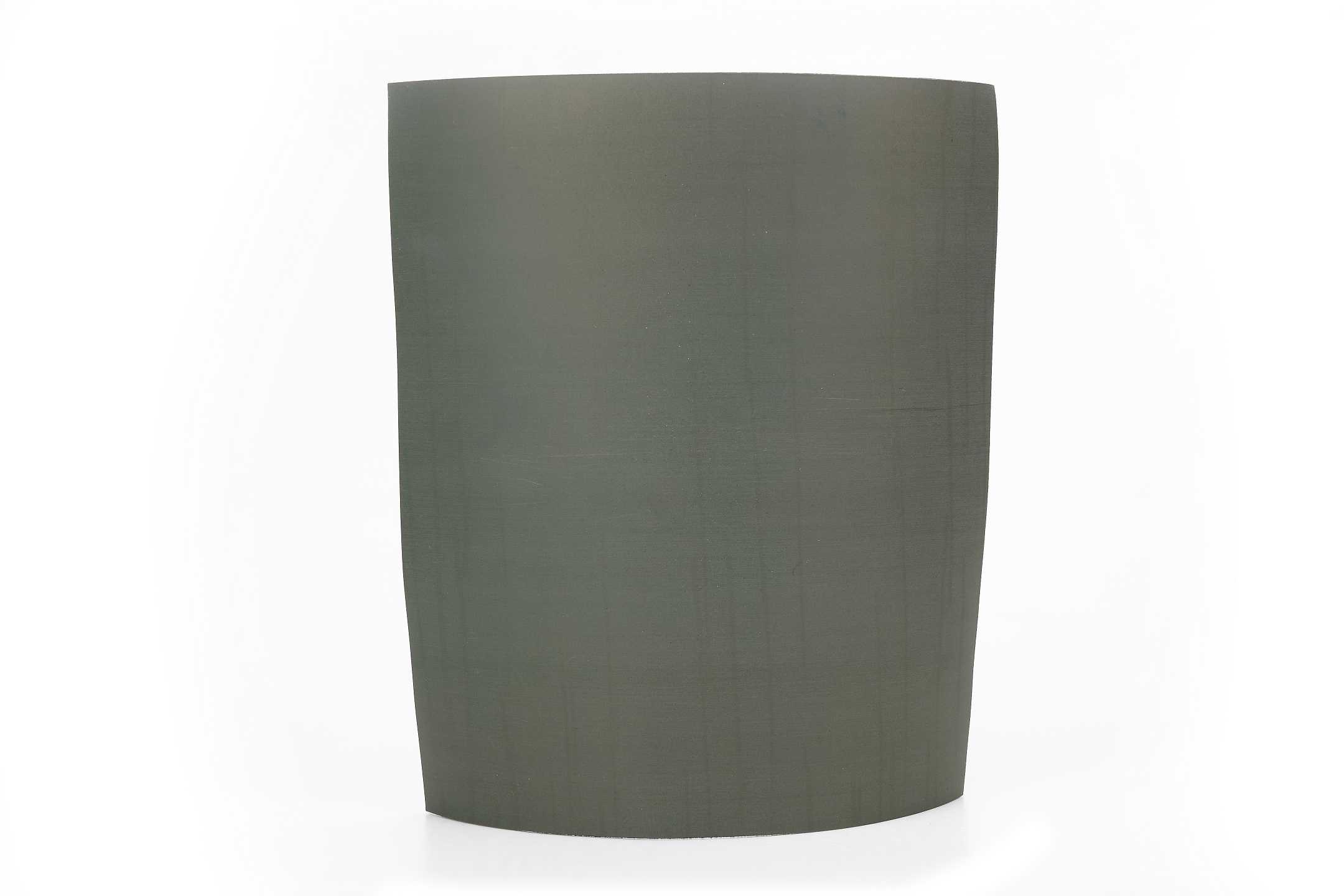

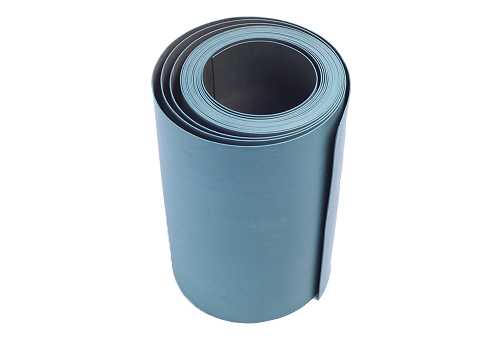

- JBF slydway

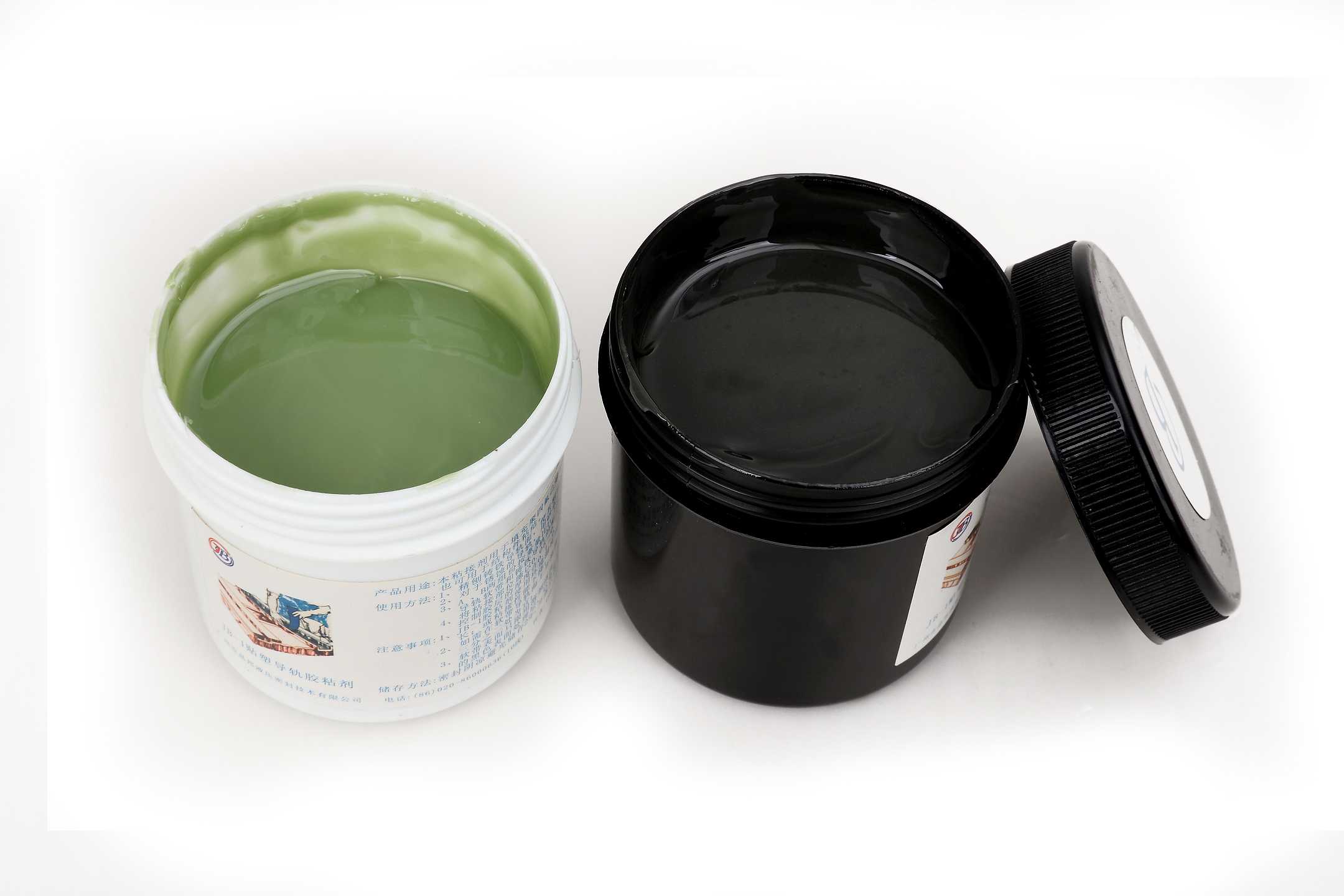

- JB-1 adhesive
- zigzag scaper
- JBF catalogue for slydway
- dishcloth(faint color, dry)
- acetone and absolute alcohol
- stirring stick and knife
- wax paper and plastic film
- clean gloves
- briquetting and fixture
