JTVM

APPLICATION RANGE

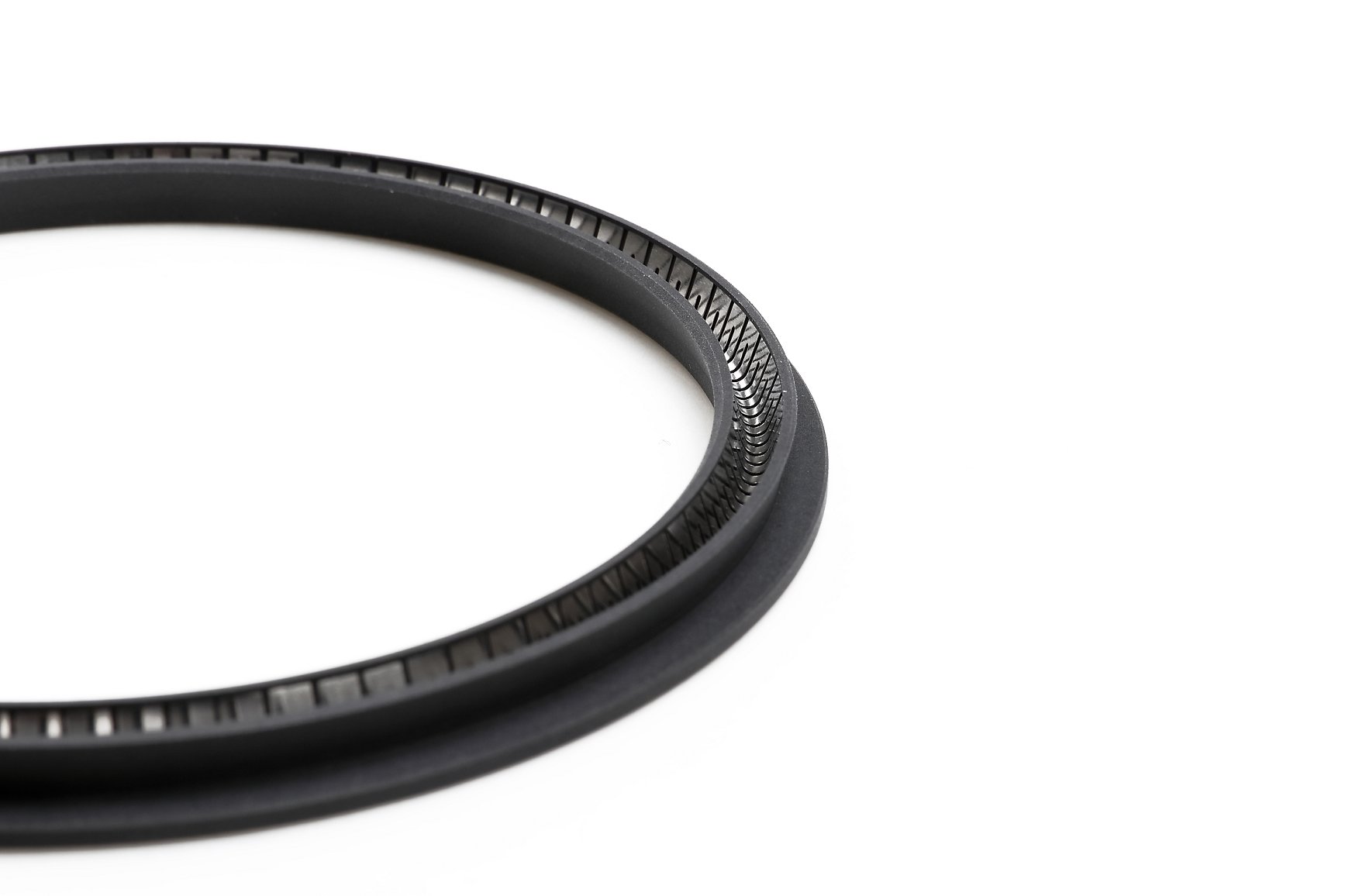

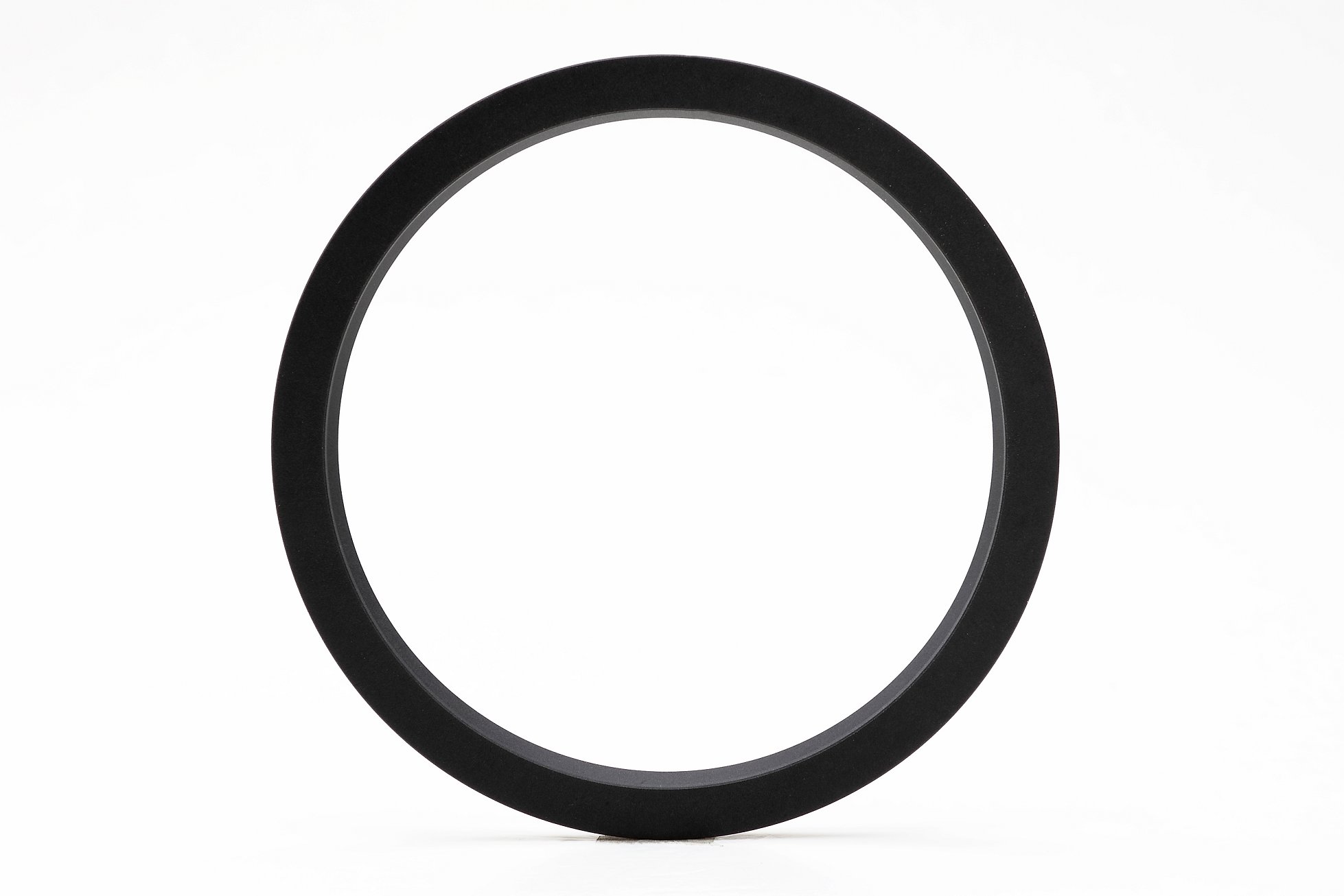

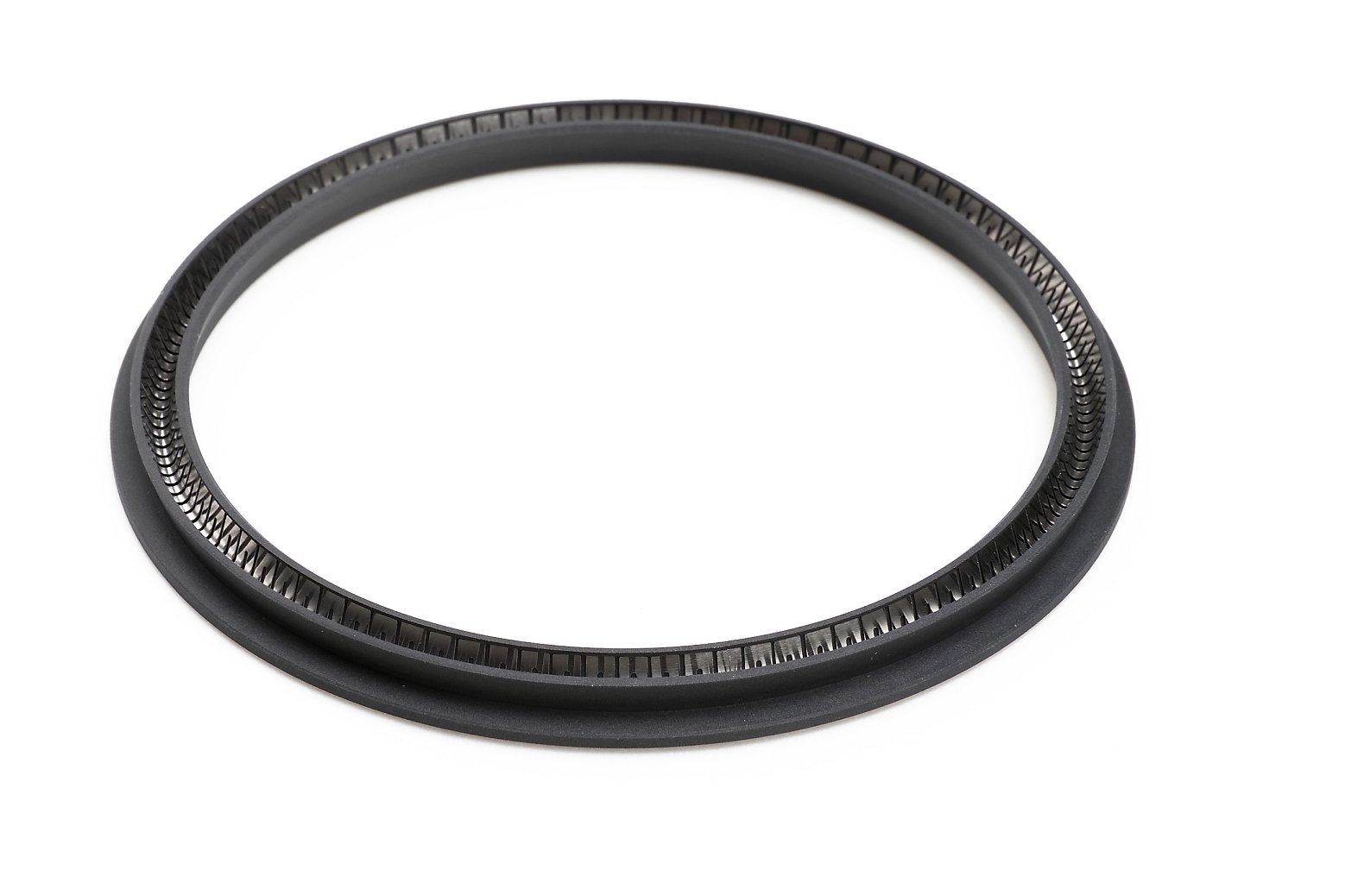

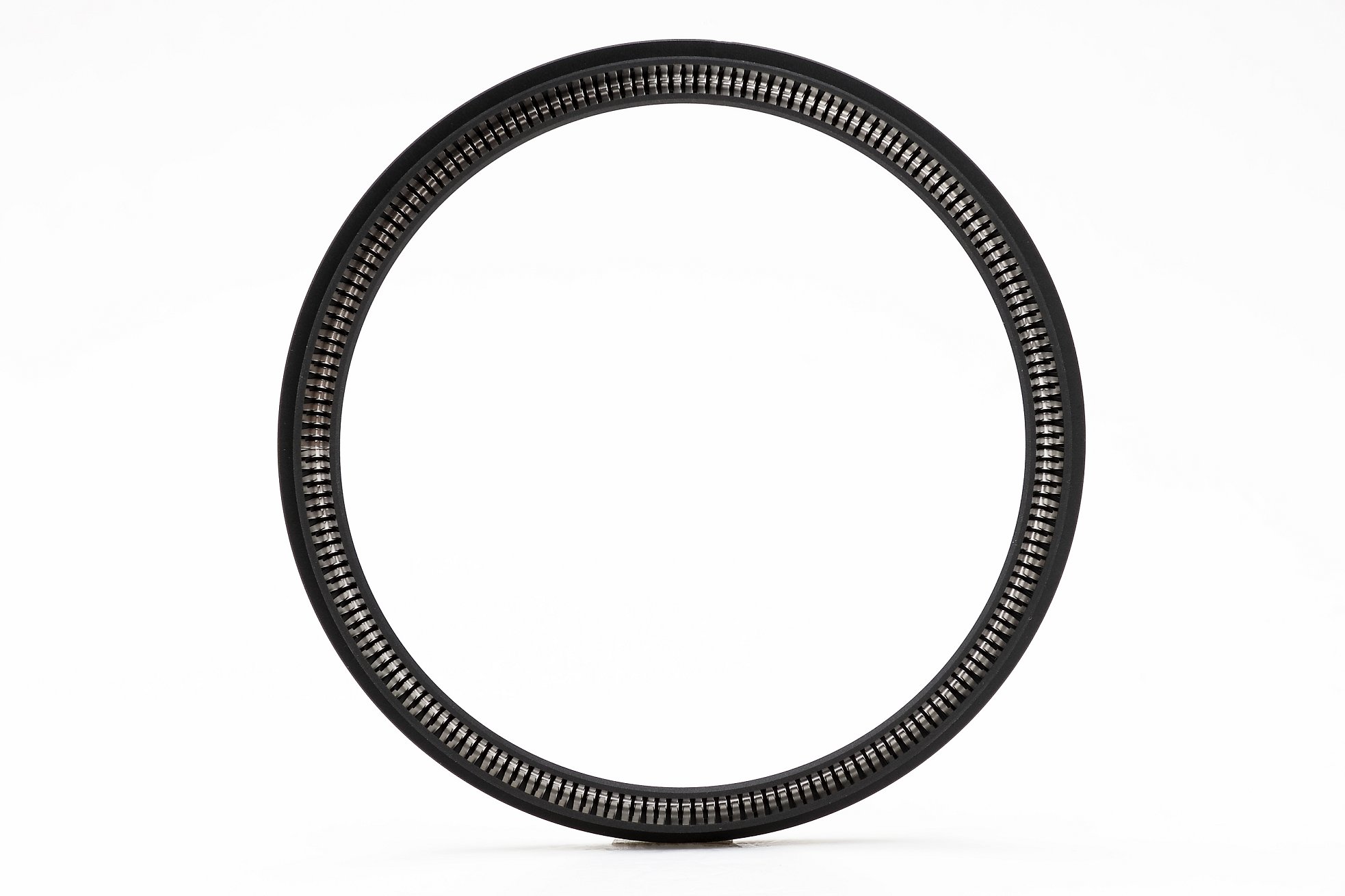

Single acting rotary seal for the axis of rotation. Widely applied to varies hydraulic systems. Besides, it is widely used in chemical, pharmaceutical
and food industries due to its excellent compatibility of the seal ring and the spring.

  STANDARD MATERIALS
  Seal ring: filled PTFE
  Spring: stainless steel

  CHARACTERISTICS
- for reciprocated and rotary sealing
- excellent scraping performance
- low friction, wear resistance, stable dimension
- excellent wear resistance performance and dimension stability
- can stand rapid temperature change
- will not pollute foods, medicines and medical fluids
- can carry out disinfection
- unlimited storage life

WORKING CONDITIONGS

VELOCITY

PRESSURE RANGE

TEMP.RANGE

MEDIUM

DIAMETER RANGE

2m/s

0~15Mpa

-55°C+260°C

All liquids, chemicals and gases.

5-1500mm
